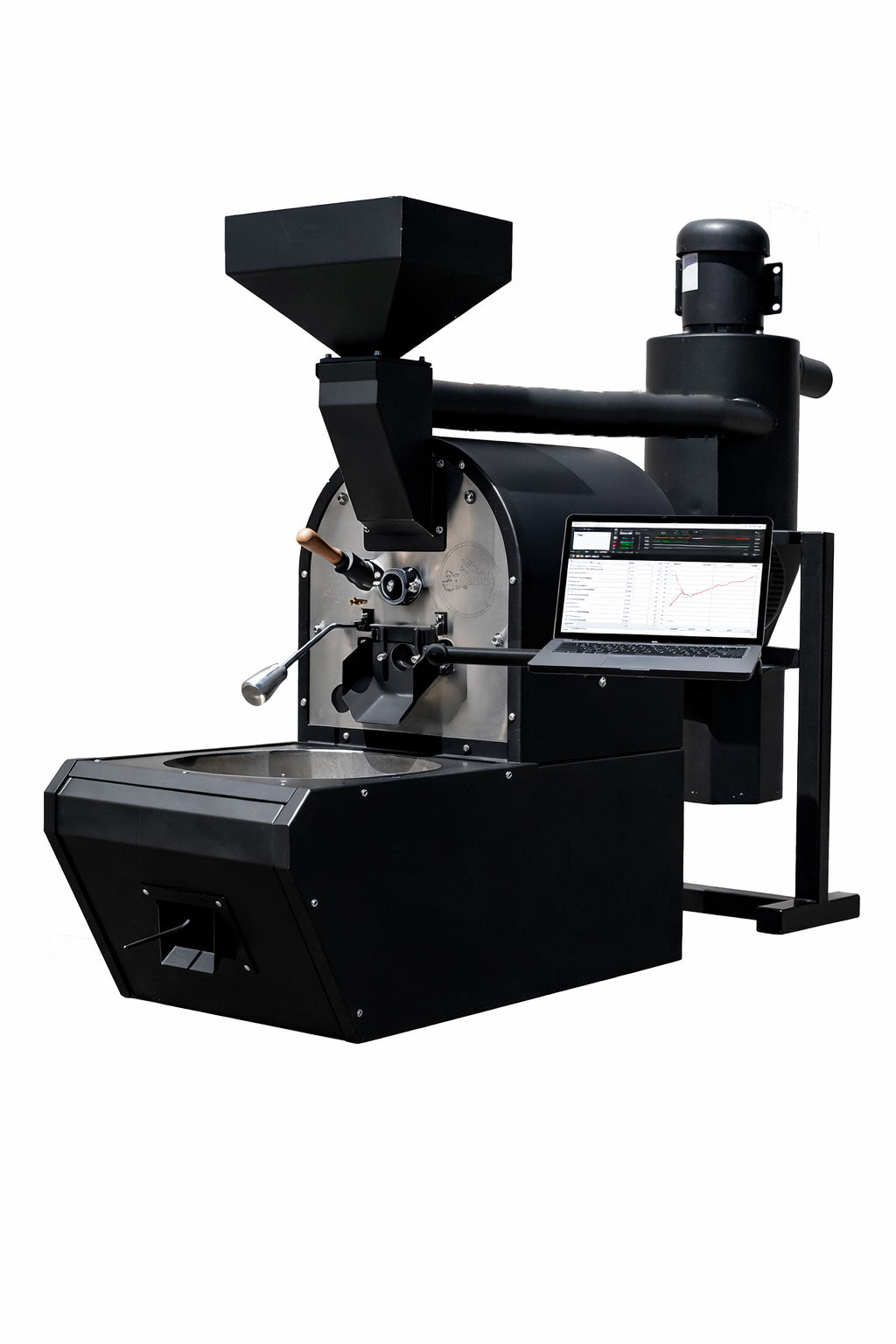

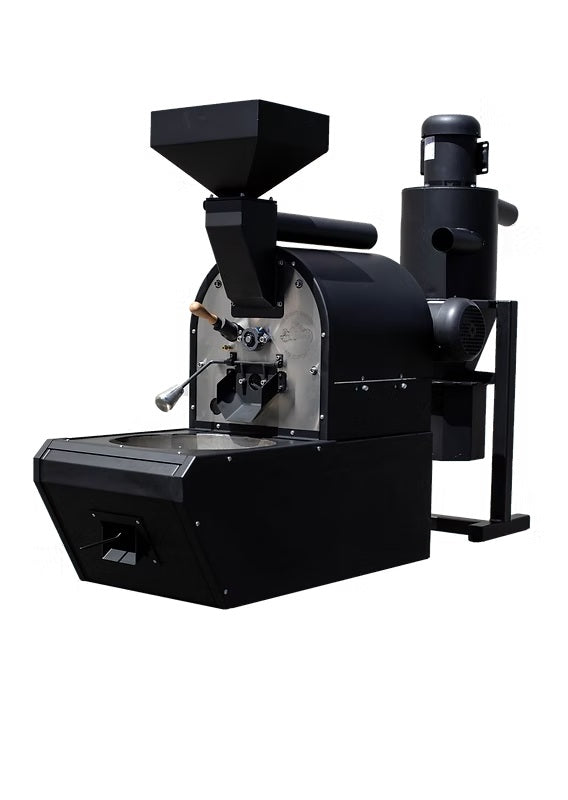

XR-5

The XR-5 Features:

Roast Master Software - Roast Master profile management software - first year included with every XR-Series purchase. After year one: $250 per year. Five-year cost: $1,000 - compared with Cropster at $6,000–$18,000.Profile builder, real-time graph view, and automatic batch logging.

Warranty - One-year warranty on all parts, components, and machinery. Lifetime workmanship warranty on every hand-built Primo machine.

Precision Infrared Heating System - Provides consistent, uniform heat.

Custom / Commercial grade Construction - 100% Designed and Made in the USA, quality, commercial-grade construction. All of our parts are available in the USA, making it easy to maintain your machine through its life cycle.

Compact Footprint - The XR-5 has a compact footprint, allowing it to fit into tighter spaces for a roaster of this size.  It is slim enough to fit through a standard man door.

Compatibility - XR-Series roasters are compatible with Cropster and Artisan via ASCII mode.

Specifications

• Green Coffee Capacity: 6 - 12lbs.; 2.25 - 6kg
• Roaster Weight (Including Cyclone): 300lbs.; 136kg
• Stand Weight: 150lbs.; 68kg
• Roast Times: 9 - 15 Minutes
• Hourly Output: 40lbs.; 19kg
• Both Propane and Natural Gas Options Available

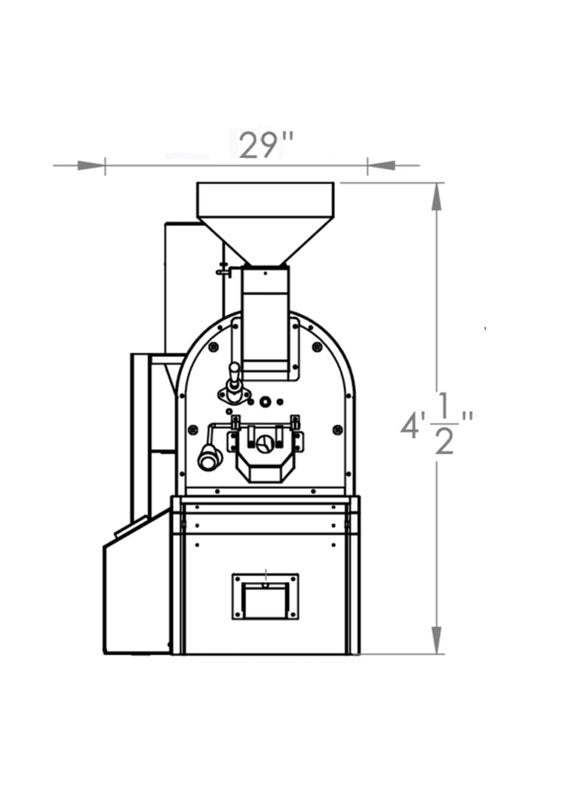

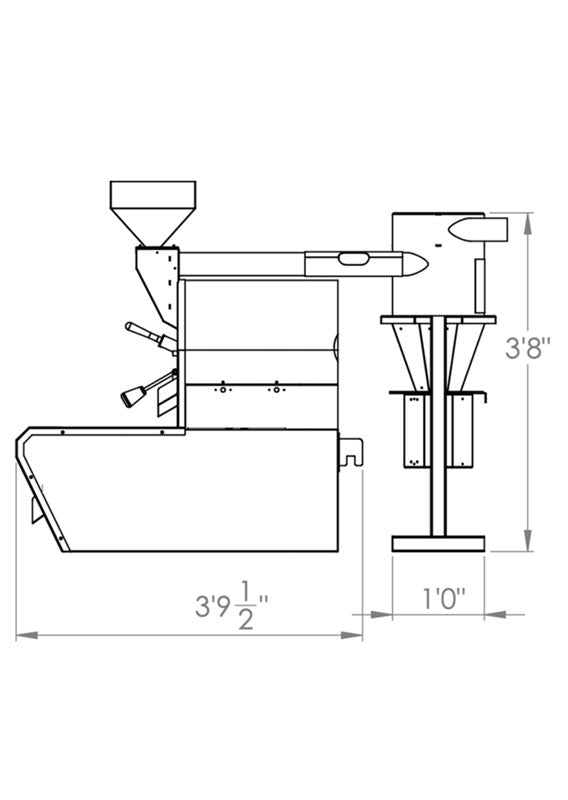

Dimensions:

      NOT Including Stand: 64" L x 29" W x 52" H

      Including Shop Stand:  68" L x 29" W x 70" H

      Including Off-Road Stand: 68" L x 29" W x 75" H

Hand-Built in Huntington Beach, California - American steel drum. Domestic parts supply - no overseas lead times for replacements.

Equipment Financing Available - Section 179 tax accelerator may apply for qualifying businesses. Call 1.800.675.0160 for financing questions and a custom quote.

Custom Finish & Design Options - All XR-Series machines ship standard in Matte Black. Design Package ($2,000) includes custom colors for body, trim, and cyclone. Logo addition available.

Cacao Roasting Capable - Our XR-Series machines roast cacao as cleanly as they roast coffee. 15+ years of cacao roasting experience informs how these machines are designed. Serious cacao operators use a dedicated drum — we can help you configure a dedicated cacao setup.

Standard Features

• Roast Master Software and Laptop Computer w/ Mounting Arm

• Specially designed paddles to keep mixing consistent

• Adjustable Airflow Control

• Adjustable Drum Speed Controls

• Manual Gas Valve

• Roast Master Roast Profiling Software

• Infrared Burner Technology

• Roast & cool simultaneously with dual motors

• Includes an independent cyclone for max chaff collection

• Accessible chaff bin for ease of emptying

• Removable sidewalls to make cleaning easy & simple

• Digital temperature and time display to make roasting simple

Additional Options

• Shop Stand - $850.00 USD

Click here to Download Technical Manual
