XR-20

XR-20 Features:

Roast Master Software - Roast Master profile management software - first year included with every XR-Series purchase. After year one: $250 per year. Five-year cost: $1,000 - compared with Cropster at $6,000–$18,000.Profile builder, real-time graph view, and automatic batch logging.

Warranty - One-year warranty on all parts, components, and machinery. Lifetime workmanship warranty on every hand-built Primo machine.

Precision Infrared Heating System -  Provides consistent, uniform heat with dual infrared burners.

Custom / Commercial grade Construction - 100% Designed and Made in the USA, quality, commercial-grade construction. All of our parts are available in the USA, making it easy to maintain your machine through its life cycle.

Compact Footprint - The XR-20, though robust in its capabilities, is designed to fit into tighter spaces for a roaster of this size.  All of the controls are located on the front of the roaster, allowing it to be located in places that other roasters just won't fit. It is slim enough to fit through a standard man door.

Compatibility - XR-Series roasters are compatible with Cropster and Artisan via ASCII mode.

Specifications

• Green Coffee Capacity: 22 - 44lbs; 10 - 20 kg
• Roaster Weight: 1200lbs.; 544.3kg
• Cyclone Weight: 300lbs; 136kg
• Roast Times: 9-14 Minutes
• Hourly Output: 144lbs; 65 kg
• Roast Air, Maximum: 360 scfm
• Cooling Tray Air, Maximum: 1125 scfm
• Both Propane and Natural Gas Options Available

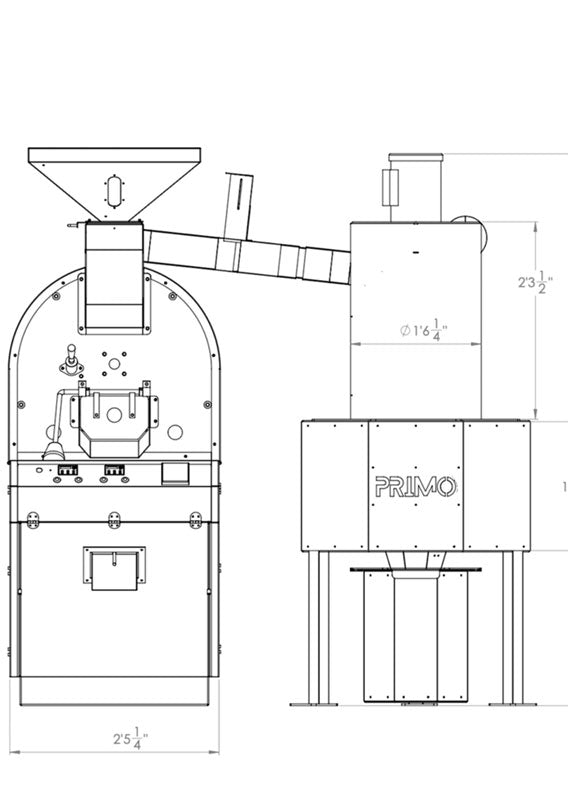

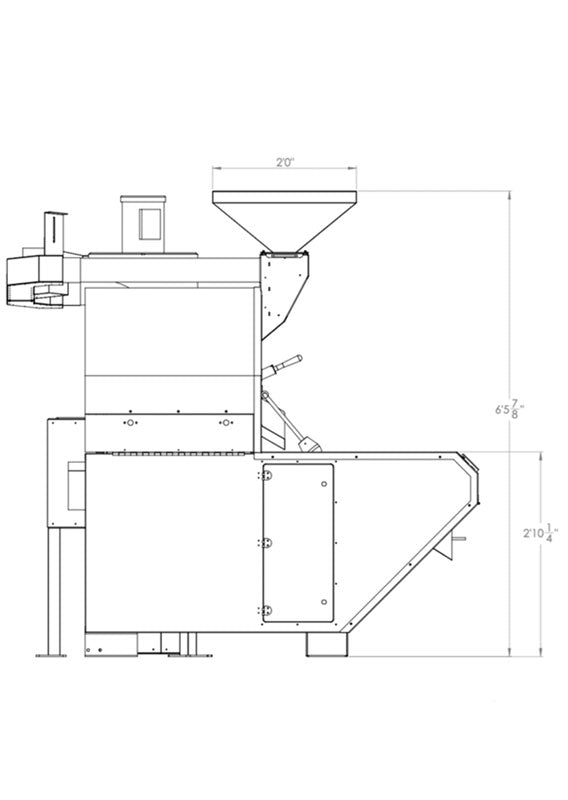

Dimensions:

        79" L x 73" W x 77" H

Hand-Built in Huntington Beach, California - American steel drum. Domestic parts supply - no overseas lead times for replacements.

Equipment Financing Available - Section 179 tax accelerator may apply for qualifying businesses. Call 1.800.675.0160 for financing questions and a custom quote.

Custom Finish & Design Options - All XR-Series machines ship standard in Matte Black. Design Package ($2,000) includes custom colors for body, trim, and cyclone. Logo addition available.

Cacao Roasting Capable - Our XR-Series machines roast cacao as cleanly as they roast coffee. 15+ years of cacao roasting experience informs how these machines are designed. Serious cacao operators use a dedicated drum — we can help you configure a dedicated cacao setup.

Standard Features

• Roast Master Software and Laptop Computer w/ Mounting Arm
• Specially designed paddles to keep mixing consistent
• Adjustable Airflow Control
• Adjustable Drum Speed Controls
• Manual Gas Valve
• Roast Master Roast Profiling Software
• Infrared Burner Technology
• Roast & cool simultaneously with dual motors
• Includes an independent cyclone for max chaff collection
• Accessible chaff bin for ease of emptying
• Removable sidewalls to make cleaning easy & simple
• Digital temperature and time display to make roasting simple

Click here to Download Technical Manual
